SG2PE1B

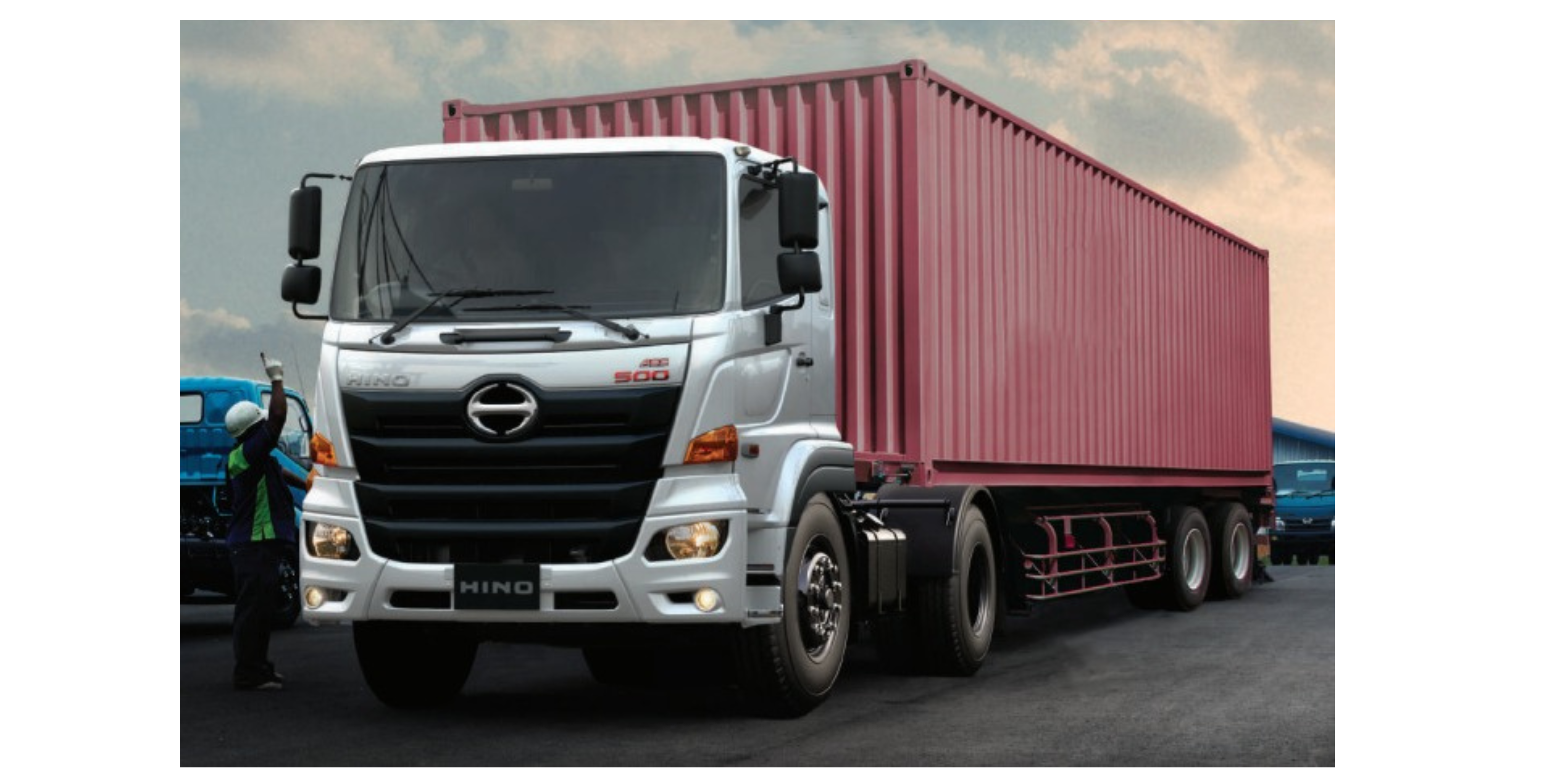

The Hino 500 Series SG2PE1B is a medium-duty diesel truck with a powerful 10520cc engine that produces 391 horsepower and 1461 Nm of torque, designed for heavy hauling with a Gross Vehicle Weight (GVW) of 46000 kg. Key features include a manual 9-speed transmission, full air brakes with ABS, a semi-elliptic leaf spring suspension for both front and rear, and a comfortable cab with an air-cushioned driver’s seat and an overhead console.
Specification
| Model/ No. of Speed | M009/9-Speed/Manual |
|---|---|
| Wheelbase (mm) | 3,480 |
| GVW/GCW (kg) | 46,000 |
| Wheel Type | Ten (10)- Stud Disc Wheel (ISO Type) |
| Emission Standard | P11C-VU (EURO 3) |
| Engine Type |
Diesel, 4cy., 6-Cylinder, Vertical In-line, Overhead Cam, Water Cooled |
| Maximum Output (kW(PS)/rpm) | 288 (391)/2,100 |
| Maximum Torque (Nm(kgfm)/rpm) | 1,461 (149)/1,500 |
