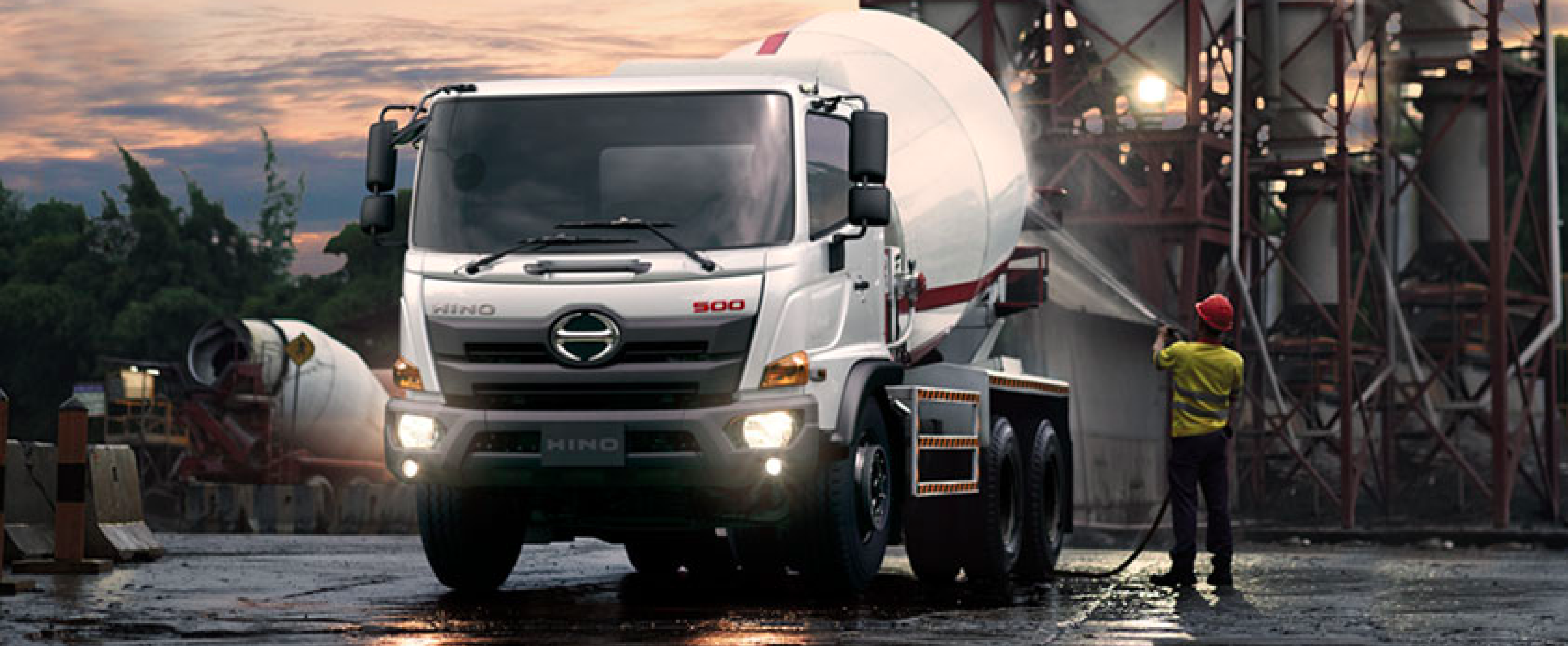

HINO 500 SERIES
Bringing HINO’s chassis versatility, HINO 500 Series is the ideal medium duty truck for operators. The outstanding range of trucks continues to offer medium duty trucks buyers total flexibility and satisfaction. The 500 series offers customers legendary fuel and operating efficiency. This is the right medium duty truck of your choice.
Specification
| Model/No. of Speed | M009/ 9-Speed/ Manual |
|---|---|
| Wheelbase (mm) | 5,830 |
| GVW/GCW (kg) | 19,000 |
| Wheel Type | Ten (10)- Stud Disc Wheel (ISO type ) |
| Emission Standard | J08E-WK (EURO 2) |
| Engine Type | Diesel, 4cy., 6-Cylinder, Vertical-in-line, Overhead Camshaft, Water Cooled |
| Maximum Output (kW(PS)/rpm) | 210 (285)/2,500 |
| Maximum Torque (Nm(kgfm)/rpm) | 892 (91)/1,500 |
| Model/No. of Speed | Mx06/6-Speed/ Manual |
|---|---|
| Wheelbase (mm) | 5,830 |
| GVW/GCW (kg) | 19,000 |
| Wheel Type | Ten (10)- Stud Disc Wheel (ISO type) |
| Emission Standard | J08E-WL (EURO 2) |
| Engine Type | Diesel, 4cy., 6-Cylinder, Vertical-in-line, Overhead Camshaft, Water Cooled |
| Maximum Output (kW(PS)/rpm) | 195 (265)/2500 |
| Maximum Torque (Nm(kgfm)/rpm) | 804 (82)/ 1,500 |
| Model/ No. of Speed | M009/9-Speed/Manual |
|---|---|
| Wheelbase (mm) | 3,480 |
| GVW/GCW (kg) | 46,000 |
| Wheel Type | Ten (10)- Stud Disc Wheel (ISO Type) |
| Emission Standard | P11C-VU (EURO 3) |
| Engine Type |
Diesel, 4cy., 6-Cylinder, Vertical In-line, Overhead Cam, Water Cooled |
| Maximum Output (kW(PS)/rpm) | 288 (391)/2,100 |
| Maximum Torque (Nm(kgfm)/rpm) | 1,461 (149)/1,500 |
| Model/ No. of Speed | M009/ 9- Speed/ Manual |
|---|---|
| Wheelbase (mm) | 3,480 + 1,350 |
| GVW/GCW (kg) | 60,000 |
| Wheel Type | Ten (10) – Stud Disc Wheel (ISO type) |
| Emission Standard | P11C-VU (EURO 3) |
| Engine Type | Diesel, 4cy., 6-Cylinder, Vertical- in- line, Overhead Camshaft , Water Cooled |
| Maximum Output (kW(PS)/rpm) | 288 (391)/2,100 |
| Maximum Torque (Nm(kgfm)/rpm) | 1,461 (149)/1,500 |
